Coal and Combo Trays

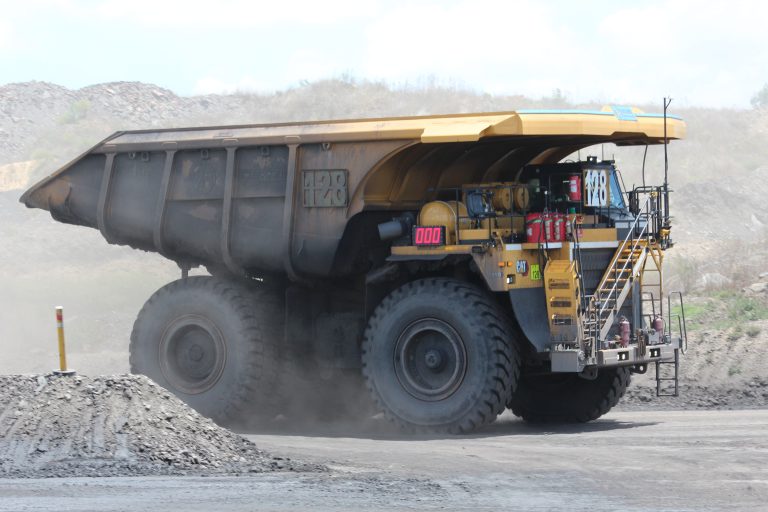

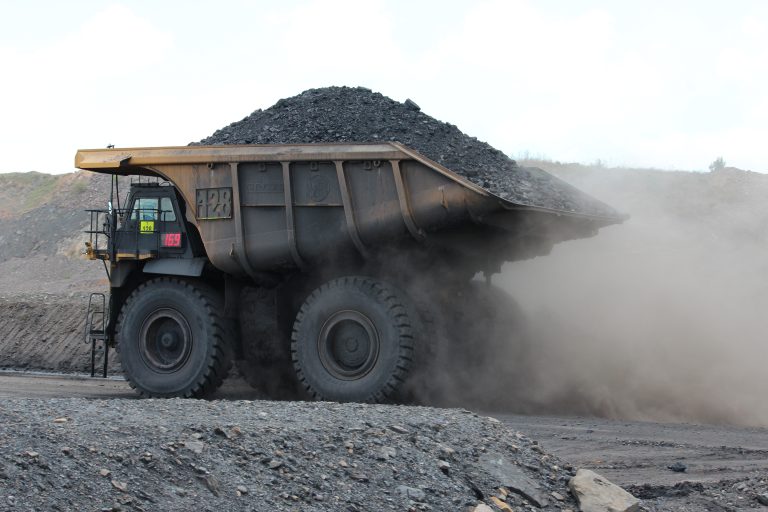

Our Coal Carrier / Combination Tray is an all-in-one design optimised to carry max payload of coal and heavier overburden in one tray body.
Revolutionary design based on design experience and field testing

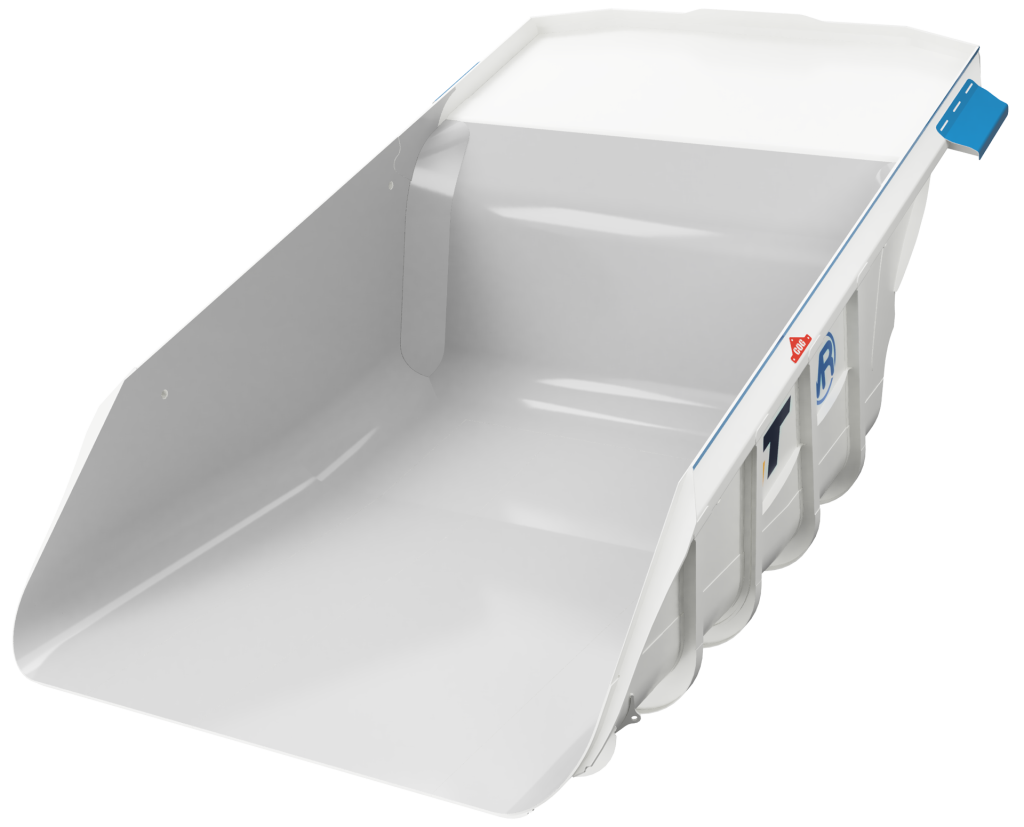

Coal Carrier / Combo trays

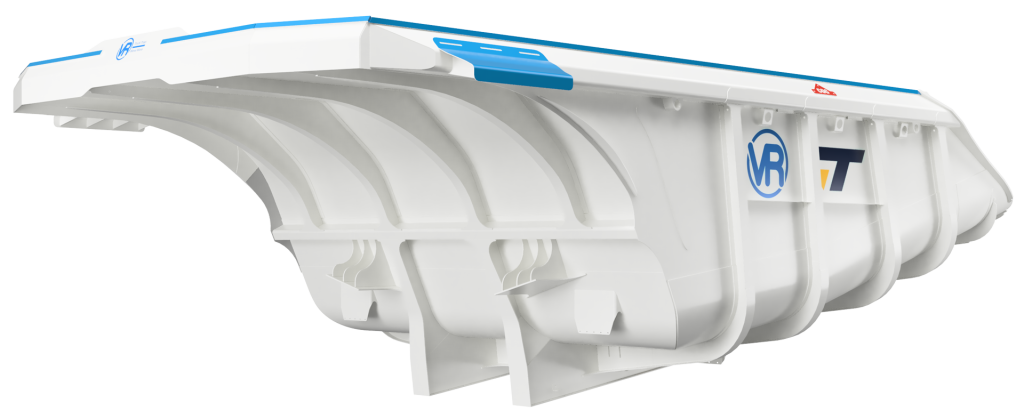

Skeletal Frame

Provides load impact support to internal plates and allows for easier main plate replacement for extended tray life if desired.

Reinforced Hoist point

Hoist point attachment interacts and lifts through skeletal frame structure, providing superior strength.

Tray resonance

The tray is designed to reduce resonance with the chassis, in turn reducing chassis cracks associated with fatigue whilst running empty.

Structural Beam design

Open beams allow for improved weld penetration, unobstructed visual inspection and no open voids collecting debris and corroding. Allows for repair to “as new” on structural joints.

Tail Edge Protection

Solid steel edge support across entire width. Protects trailing edge of the floor plate from damage with limited to no maintenance required.

Low profile tail

Improves berm clearance and reduces tail damage.

canopy facia

Pressed facia plate offers strength to canopy and spillage protection for stray rocks and debris. Facia height can be raised in lieu of heavier canopy extensions.

Front Wall / Canopy ribs

Well supported front wall impact zone with continuous ribs reinforcing the front wall to canopy joint and providing exceptional support to overhanging canopy. Structural strength reduces risk in event of roll over.

Sloping Box

Open structure – no concealed welds, allows for easy inspection and maintenance if required.

Floor Angle

Floor angle engineered to achieve accurate axle splits in both Coal and overburden whilst ensuring efficient discharge and dumping height.

Canopy upstand

Upstanding canopy edge designed to retain material overflow and reduce spillage over front or sides. Upstand height customised to customers preference.

Flat Floor

A flat floor is required to achieve the kicked-up angle of the large volume tray designed for low density coal.

Reinforced Top Rail

Internal side plate extends past top bolster with additional stiffener offering increased resistance to damage from rocks and loading tools.

Sloping front wall

Upper section of the front wall angled forward to maximise payload in low density coal.

Bolt-on Eyebrows

For reduced transport width and easy infield replacement in case of damage

ENGINEERING

Design Benefits

Customisable plate package with low, medium & heavy-duty variants
Application specific floor layouts
Designed to suit all loading tools
Customisable paint options
Reduced cost of ownership
Proven life in hard rock conditions
Designs based on many years of active in-field testing
Stringent client feedback loops
Designed to interface with OEM parts

*Final Design weight subject to site specific conditions, required life expectancy, etc.
